| ANSI B 29.1 |
American Heavy Series |
| Specification |
The
American Heavy series roller chains are designed using link plates
from the next higher size. The thicker link plates provide increased
fatigue resistance and are used in
drives subjected to heavy shock loads, multiple
stops or reversing. |
|
|

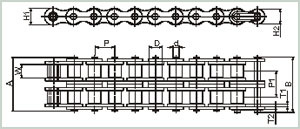

Double Strand
|
Intl. |
Diamond |
Pitch |
Width |
Roller |
Bea- |
Plate |
Height |
Plate |
Width |
Width |
Trans |
Tensile |
|
Ref. |
Chain |
(P) |
between |
Dia |
ring |
|
|
Thickness |
Over |
Over |
verse |
Stre- |
|
No. |
No. |
|
Inner |
|
Pin |
|
|
|
|
Bearing |
Joint |
Pitch |
ngth |
| |
|
|
Plates |
|
Dia |
IP |
OP |
IP |
OP |
Pin |
Fasteners |
|
|
| |
|
|
(W) |
(D) |
(d) |
(H1) |
(H2) |
(T1) |
(T2) |
(A) |
(B) |
(P1) |
(Kgf) |
| |
|
|
(Min) |
(Max) |
(Max) |
(Max) |
(Max) |
|
|
(Max) |
(Max) |
|
(Min) |
|
60H-2 |
D122 02 |
19.05 |
12.58 |
11.91 |
5.94 |
18.00 |
14.88 |
3.15 |
3.15 |
56.10 |
60.70 |
26.11 |
6480 |
|
80H-2 |
D 162 02 |
25.40 |
15.75 |
15.88 |
7.94 |
24.10 |
20.80 |
4.00 |
4.00 |
70.50 |
75.90 |
32.59 |
11560 |
|
100H-2 |
D 202 02 |
31.75 |
18.90 |
19.05 |
9.54 |
30.10 |
26.00 |
4.70 |
4.70 |
84.00 |
90.10 |
39.09 |
18060 |
|
120H-2 |
D 242 02 |
38.10 |
25.22 |
22.23 |
11.11 |
36.20 |
31.20 |
5.56 |
5.56 |
103.80 |
110.40 |
48.87 |
25900 |
|
140H-2 |
D 282 02 |
44.45 |
25.22 |
25.40 |
12.71 |
42.20 |
36.40 |
6.30 |
6.30 |
112.20 |
119.60 |
52.20 |
35160 |
|
160H-2 |
D 322 02 |
50.80 |
31.55 |
28.57 |
14.29 |
48.20 |
41.60 |
7.14 |
7.14 |
132.00 |
139.90 |
61.90 |
46240 |
|
200H-2 |
D 402 02 |
63.50 |
37.85 |
39.67 |
19.85 |
60.30 |
52.00 |
8.80 |
8.80 |
170.60 |
180.80 |
78.31 |
72140 |
|
|
|
