| ANSI B 29.1 |
American Heavy Series |
| Specification |
The
American Heavy series roller chains are designed using link plates
from the next higher size. The thicker link plates provide increased
fatigue resistance and are used in
drives subjected to heavy shock loads, multiple
stops or reversing. |
|
|

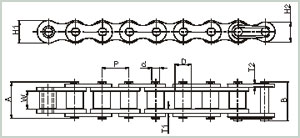

Single Strand
|
Intl. |
Diamond |
Pitch |
Width |
Roller |
Bea- |
Plate |
Height |
Plate |
Width |
Width |
Tensile |
|
Ref. |
Chain |
|
between |
Dia |
ring |
|
|
Thickness |
Over |
Over |
Stre- |
|
No. |
No. |
|
Inner |
|
Pin |
|
|
|
|
Bearing |
Joint |
ngth |
| |
|
|
Plates |
|
Dia |
IP |
OP |
IP |
OP |
Pin |
Fasteners |
|
| |
|
(P) |
(W) |
(D) |
(d) |
(H1) |
(H2) |
(T1) |
(T2) |
(A) |
(B) |
(Kgf) |
| |
|
|
(Min) |
(Max) |
(Max) |
(Max) |
(Max) |
|
|
(Max) |
(Max) |
(Min) |
|
60H-1 |
D122 01 |
19.05 |
12.58 |
11.91 |
5.94 |
18.00 |
14.88 |
3.15 |
3.15 |
31.20 |
35.80 |
3240 |
|
80H-1 |
D162 01 |
25.40 |
15.75 |
15.88 |
7.94 |
24.10 |
20.80 |
4.00 |
4.00 |
38.00 |
43.40 |
5780 |
|
100H-1 |
D202 01 |
31.75 |
18.90 |
19.05 |
9.54 |
30.10 |
26.00 |
4.70 |
4.70 |
45.40 |
51.50 |
9030 |
|
120H-1 |
D242 01 |
38.10 |
25.22 |
22.23 |
11.11 |
36.20 |
31.20 |
5.56 |
5.56 |
55.10 |
61.70 |
12950 |
|
140H-1 |
D282 01 |
44.45 |
25.22 |
25.40 |
12.71 |
42.20 |
36.40 |
6.30 |
6.30 |
60.40 |
67.80 |
17580 |
|
160H-1 |
D322 01 |
50.80 |
31.55 |
28.57 |
14.29 |
48.20 |
41.60 |
7.14 |
7.14 |
70.00 |
77.90 |
23120 |
|
200H-1 |
D402 01 |
63.50 |
37.85 |
39.67 |
19.85 |
60.30 |
52.00 |
8.80 |
8.80 |
93.10 |
103.30 |
36070 |
|
|
|
