TIDC India - Standard Roller Chains

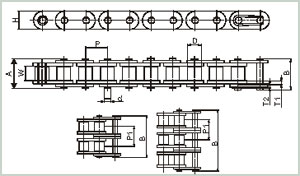

Intl.	Diamond	Pitch	Width	Roller	Bearing	Plate	Plate		Width	Width	Transv-	Tensile
Ref.	Chain		between	Dia	Pin	Height	Thickness		Over	Over	erse	Strength
No.	No.		Inner		Dia				Bearing	Joint	Pitch
			Plates				IP	OP	Pin	Fasteners
		(P)	(W)	(D)	(d)	(H)			(A)	(B)	(P1)	(Kgf)
							T1	T2
			(Min)	(Max)	(Max)	(Max)			(Max)	(Max)		(Min)
C40-1	D08A01ST01	12.70	7.85	7.92	3.96	12.00	1.50	1.50	17.80	21.70	14.38	1440
C40-2	D08A02ST01								32.30	38.20		2880
C40-3	D08A03ST01								46.70	50.80		4320
C50-1	D10201ST02	15.875	9.40	10.16	5.08	15.00	2.00	2.00	21.80	25.90	18.11	2270
C50-2	D10202ST02								39.90	44.00		4540
C50-3	D10203ST02								57.90	62.00		6810
C60-1	D12101ST01	19.05	12.58	11.91	5.94	18.00	2.39	2.39	26.90	31.50	22.78	3240
C60-2	D12102ST01								49.70	54.40		6490
C60-3	D12103ST01								72.60	77.20		9730
C80-1	D16101ST01	25.40	15.75	15.88	7.92	24.10	3.15	3.15	33.50	38.90	29.29	5780
C80-2	D16102ST01								62.70	68.10		11560
C80-3	D16103ST01								91.90	97.10		17340
C100-1	D20101ST01	31.75	18.90	19.05	9.53	30.10	4.00	4.00	41.10	47.20	35.76	9030
C100-2	D20102ST01								77.70	83.10		18060
C100-3	D20103ST01								113.00	119.10		27090
C120-1	D24101ST01	38.10	25.22	22.23	11.10	36.20	4.70	4.70	50.80	57.40	45.44	12950
C120-2	D24102ST01								96.30	102.90		25950
C120-3	D24103ST01								141.03	147.60		38850
C160-1	D32101ST01	50.80	31.55	28.58	14.27	47.78	6.30	6.30	65.50	73.40	58.55	23130
C160-2	D32102ST01								124.00	131.90		46250
C160-3	D32103ST01								182.00	189.90		69370
