| ISO 606/ANSI B29.1/DIN
8188 |
American Series |
| Specification |
The
American series of roller chains are designed for use in mechanical
power transmission systems. |
|
|

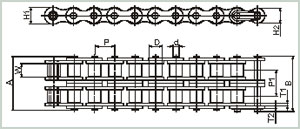

Double Strand
|
Intl. |
Diamond |
Pitch |
Width |
Roller |
Bea- |
Plate |
Plate |
Width |
Width |
Trans |
Tensile |
|
Ref. |
Chain |
|
between |
Dia |
ring |
Height |
Thickness |
Over |
Over |
verse |
Stre- |
|
No. |
No. |
|
Inner |
|
Pin |
|
|
|
|
Bearing |
Joint |
Pitch |
ngth |
| |
|
|
Plates |
|
Dia |
IP |
OP |
IP |
OP |
Pin |
Fasteners |
|
|
| |
|
(P) |
(W) |
(D) |
(d) |
(H1) |
(H2) |
(T1) |
(T2) |
(A) |
(B) |
(P1) |
(Kgf) |
| |
|
|
(Min) |
(Max) |
(Max) |
(Max) |
(Max) |
|
|
(Max) |
(Max) |
|
(Min) |
|
35-2 |
B 06A 02 |
9.525 |
4.68 |
5.08* |
3.59 |
8.65 |
7.48 |
1.25 |
1.25 |
24.20 |
27.40 |
10.13 |
1600 |
|
40-2 |
D 08A 02 |
12.70 |
7.85 |
7.92 |
3.96 |
12.00 |
10.40 |
1.50 |
1.50 |
32.30 |
36.20 |
14.38 |
2880 |
|
50-2 |
D 102 02 |
15.875 |
9.40 |
10.16 |
5.08 |
15.00 |
13.00 |
2.00 |
2.00 |
39.90 |
44.00 |
18.11 |
4540 |
|
60-2 |
D 121 02 |
19.05 |
12.58 |
11.91 |
5.94 |
18.00 |
16.60 |
2.39 |
2.39 |
49.80 |
54.40 |
22.78 |
6480 |
|
80-2 |
D 161 02 |
25.40 |
15.75 |
15.88 |
7.92 |
24.10 |
20.80 |
3.15 |
3.15 |
62.70 |
68.10 |
29.29 |
11560 |
|
100-2 |
D 201 02 |
31.75 |
18.90 |
19.05 |
9.53 |
30.10 |
26.00 |
4.00 |
4.00 |
77.00 |
83.10 |
35.76 |
18060 |
|
120-2 |
D 241 02 |
38.10 |
25.22 |
22.23 |
11.10 |
36.20 |
31.20 |
4.70 |
4.70 |
96.30 |
102.90 |
45.44 |
25900 |
|
140-2 |
D 281 02 |
44.45 |
25.22 |
25.40 |
12.70 |
42.20 |
36.40 |
5.56 |
5.56 |
103.00 |
110.40 |
48.87 |
35160 |
|
160-2 |
D 321 02 |
50.80 |
31.55 |
28.57 |
14.27 |
48.20 |
41.60 |
6.30 |
6.30 |
124.00 |
131.90 |
58.55 |
46240 |
|
180-2 |
D 361 02 |
57.15 |
35.48 |
35.71 |
17.46 |
54.31 |
46.86 |
7.14 |
7.14 |
140.00 |
149.90 |
65.84 |
57100 |
|
200-2 |
D 401 02 |
63.50 |
37.85 |
39.68 |
19.84 |
60.30 |
52.00 |
7.90 |
7.90 |
151.00 |
161.00 |
71.55 |
72140 |
|
240-2 |
D 481 02 |
76.20 |
47.35 |
47.63 |
23.80 |
72.30 |
62.40 |
8.80 |
8.80 |
183.00 |
193.00 |
87.83 |
106100 |
* Bush Chain
|
