| ANSI B 29.1 |
HI-Life Chains - American Heavy Series |
| Specification |
The
chains are dimensionally identical to American Heavy series chains.
However the through hardened high
tensile pins give the chain a higher
working load capacity and improved fatigue resistance in high
load and fluctuating type of applications. |
|
|

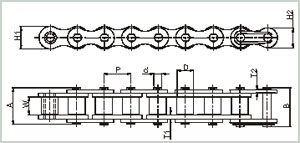

Single Strand
|
Intl. |
Diamond |
Pitch |
Width |
Roller |
Plate |
Plate |
Bearing |
Width |
Width |
Tensile |
|
Ref. |
Chain |
|
Between |
Dia |
Height |
Thickness |
Pin |
Over |
Over |
Strength |
|
No. |
No. |
|
Inner |
|
|
|
|
|
Dia |
Bearing |
Joint |
|
| |
|
|
Plates |
|
IP |
OP |
IP |
OP |
|
Pin |
Fasteners |
|
| |
|
(P) |
(W) |
(D) |
H1 |
H2 |
T1 |
T2 |
(d) |
(A) |
(B) |
(Kgf) |
| |
|
|
(Min) |
(Max) |
(Max) |
(Max) |
|
|
(Max) |
(Max) |
(Max) |
(Min) |
|
60H-1 |
D 12201HE01 |
19.05 |
12.58 |
11.91 |
18.00 |
14.88 |
3.15 |
3.15 |
5.96 |
31.20 |
35.80 |
4600 |
|
80H-1 |
D 16201HE02 |
25.40 |
15.75 |
15.88 |
24.10 |
20.80 |
4.00 |
4.00 |
7.94 |
38.00 |
43.40 |
8700 |
|
100H-1 |
D 20201HE02 |
31.75 |
18.90 |
19.05 |
30.10 |
26.00 |
4.70 |
4.70 |
9.54 |
45.40 |
51.50 |
11500 |
|
120H-1 |
D 24201HE02 |
38.10 |
25.23 |
22.23 |
36.20 |
31.20 |
5.56 |
5.56 |
11.11 |
55.10 |
61.70 |
16200 |
|
160H-1 |
D 32201HE01 |
50.80 |
31.55 |
28.57 |
48.20 |
41.60 |
7.14 |
7.14 |
14.29 |
70.00 |
77.90 |
29000 |
|
200H-1 |
D 40201HE01 |
63.50 |
37.85 |
39.67 |
60.30 |
52.00 |
8.80 |
8.80 |
19.85 |
93.10 |
103.30 |
52500 |
|
