Diamond Max European Series

Specification

Single Strand

Intl.	Diamond	Pitch	Width	Roller	Plate	Bearing	Width	Width	Diamond
Ref.	MAX		between	Dia	Height	Pin	Over	Over	MAX
No.	Chain		Inner			Dia	Bearing	Joint	Tensile
	No.		Plates				Pin	Fasteners	Strength
		(P)	(W)	(D)	(H)	(d)	(A)	(B)	(Kgf)
			(Min)	(Max)	(Max)	(Max)	(Max)	(Max)	(Min)
08B-1	Q083 01	12.70	7.75	8.51	11.81	4.45	17.00	20.90	2100
10B-1	Q101 01	15.875	9.65	10.16	14.73	5.08	19.60	23.70	2800
12B-1	Q120 01	19.05	11.68	12.07	16.13	5.72	22.70	27.30	3400
16B-1	Q160 01	25.40	17.02	15.88	21.08	8.27	36.10	41.50	7500
20B-1	Q200 01	31.75	19.56	19.05	26.42	10.19	43.20	49.30	11300

Double Strand

Intl.	Diamond	Pitch	Width	Roller	Plate	Bearing	Width	Width	Transverse	Diamond
Ref.	MAX		between	Dia	Height	Pin	Over	Over	Pitch	MAX
	Chain		Inner			Dia	Bearing	Joint		Tensile
No.	No.		Plates				Pin	Fasteners		Strength
		(P)	(W)	(D)	(H)	(d)	(A)	(B)	(P1)	(Kgf)
			(Min)	(Max)	(Max)	(Max)	(Max)	(Max)		(Min)
08B-2	Q083 02	12.70	7.75	8.51	11.81	4.45	31.00	34.90	13.92	3750
10B-2	Q101 02	15.875	9.65	10.16	14.73	5.08	36.20	40.30	16.59	5600
12B-2	Q120 02	19.05	11.68	12.07	16.13	5.72	42.20	46.80	19.46	6800
16B-2	Q160 02	25.40	17.02	15.88	21.08	8.27	68.00	73.40	31.88	15000
20B-2	Q200 02	31.75	19.56	19.05	26.42	10.19	79.70	85.80	36.45	22600

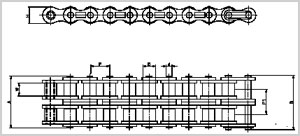

Triple Strand

Intl.	Diamond	Pitch	Width	Roller	Plate	Bearing	Width	Width	Transverse	Diamond
Ref.	MAX		between	Dia	Height	Pin	Over	Over	Pitch	MAX
	Chain		Inner			Dia	Bearing	Joint		Tensile
No.	No.		Plates				Pin	Fasteners		Strength
		(P)	(W)	(D)	(H)	(d)	(A)	(B)	(P1)	(Kgf)
			(Min)	(Max)	(Max)	(Max)	(Max)	(Max)		(Min)
08B-3	Q 083 03	12.70	7.75	8.51	11.81	4.45	44.90	48.80	13.92	5590
10B-3	Q101 03	15.875	9.65	10.16	14.73	5.08	52.80	56.90	16.59	8400
12B-3	Q120 03	19.05	11.68	12.07	16.13	5.72	61.70	66.30	19.46	10200
16B-3	Q160 03	25.40	17.02	15.88	21.08	8.27	99.90	105.30	31.88	22500
20B-3	Q200 03	31.75	19.56	19.05	26.42	10.19	116.10	122.10	36.45	33900
