Straight Side Plate Chains - European Series |
| Specification |
The
straight side plate chains are identical to the corresponding European
series standard chains except for the straight side plates. The
chains have higher fatigue resistance than the standard chains. |
|
|

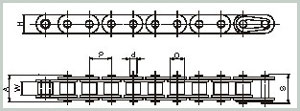

Single Strand
|
Intl. |
Diamond |
Pitch |
Width |
Roller |
Bearing |
Plate |
Width |
Width |
Tensile |
|
Ref. |
Chain |
|
between |
Dia |
Pin |
Height |
Over |
Over |
Strength |
|
No. |
No. |
|
Inner |
|
Dia |
|
Bearing |
Joint |
|
| |
|
|
Plates |
|
|
|
Pin |
Fasteners |
|
| |
|
(P) |
(W) |
(D) |
(d) |
(H) |
(A) |
(B) |
(Kgf) |
| |
|
|
(Min) |
(Max) |
(Max) |
(Max) |
(Max) |
(Max) |
(Min) |
|
C08B |
D083 01 ST 01 |
12.70 |
7.75 |
8.51 |
4.45 |
11.80 |
17.00 |
20.90 |
1840 |
|
C10B |
D101 01 ST 01 |
15.875 |
9.65 |
10.16 |
5.08 |
14.70 |
19.60 |
23.70 |
2290 |
|
C12B |
D120 01 ST 01 |
19.05 |
11.68 |
12.07 |
5.72 |
16.10 |
22.70 |
27.30 |
2960 |
|
C16B
|
D160 01ST 01 |
25.40 |
17.02 |
15.88 |
8.27 |
24.10 |
36.10 |
41.50 |
6120 |
|
D160 01 ST 02 |
25.40 |
17.02 |
15.88 |
8.27 |
20.58 |
36.10 |
41.50 |
6120 |
|
C20B |
D200 01 ST 01 |
31.75 |
19.56 |
19.05 |
10.19 |
26.40 |
43.20 |
49.30 |
9690 |
|
C24B |
D240 01 ST 01 |
38.10 |
25.40 |
25.40 |
14.63 |
33.40 |
53.40 |
60.00 |
16310 |
|
C28B |
D280 01 ST 01 |
44.45 |
30.99 |
27.94 |
15.90 |
37.00 |
65.10 |
72.50 |
20390 |
|
C32B |
D320 01 ST 01 |
50.80 |
30.99 |
29.21 |
17.81 |
42.20 |
67.40 |
75.30 |
25500 |

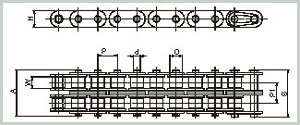

Double Strand
|
Intl. |
Diamond |
Pitch |
Width |
Roller |
Bearing |
Plate |
Width |
Width |
Transv- |
Tensile |
|
Ref. |
Chain |
|
between |
Dia |
Pin |
Height |
Over |
Over |
erse |
Strength |
|
No. |
No. |
|
Inner |
|
Dia |
|
Bearing |
Joint |
Pitch |
|
| |
|
|
Plates |
|
|
|
Pin |
Fasteners |
|
|
| |
|
(P) |
(W) |
(D) |
(d) |
(H) |
(A) |
(B) |
(P1) |
(Kgf) |
| |
|
|
(Min) |
(Max) |
(Max) |
(Max) |
(Max) |
(Max) |
|
(Min) |
|
C08B |
D083 02 ST 01 |
12.70 |
7.75 |
8.51 |
4.45 |
11.80 |
31.00 |
34.90 |
13.92 |
3270 |
|
C10B |
D101 02 ST 01 |
15.875 |
9.65 |
10.16 |
5.08 |
14.70 |
36.20 |
40.30 |
16.59 |
4540 |
|
C12B |
D120 02 ST 01 |
19.05 |
11.68 |
12.07 |
5.72 |
16.10 |
42.20 |
46.80 |
19.46 |
5900 |
|
C16B
|
D160 02 ST 01 |
25.40 |
17.02 |
15.88 |
8.27 |
24.10 |
68.00 |
73.40 |
31.88 |
11600 |
|
D160 02 ST 02 |
25.40 |
17.02 |
15.88 |
8.27 |
20.58 |
68.00 |
73.40 |
31.88 |
11600 |
|
C20B |
D200 02 ST 01 |
31.75 |
19.56 |
19.05 |
10.19 |
26.40 |
79.00 |
85.10 |
36.45 |
17330 |
|
C24B |
D240 02 ST 01 |
38.10 |
25.40 |
25.40 |
14.63 |
33.40 |
101.00 |
107.60 |
48.36 |
28850 |
|
C28B |
D280 02 ST 01 |
44.45 |
30.99 |
27.94 |
15.90 |
37.00 |
124.00 |
131.40 |
59.56 |
36700 |
|
C32B |
D320 02 ST 01 |
50.80 |
30.99 |
29.21 |
17.81 |
42.20 |
126.00 |
133.90 |
58.55 |
45880 |
Triple Strand
|
Intl. |
Diamond |
Pitch |
Width |
Roller |
Bearing |
Plate |
Width |
Width |
Transv- |
Tensile |
|
Ref. |
Chain |
|
between |
Dia |
Pin |
Height |
Over |
Over |
erse |
Strength |
|
No. |
No. |
|
Inner |
|
Dia |
|
Bearing |
Joint |
Pitch |
|
| |
|
|
Plates |
|
|
|
Pin |
Fasteners |
|
|
| |
|
(P) |
(W) |
(D) |
(d) |
(H) |
(A) |
(B) |
(P1) |
(Kgf) |
| |
|
|
(Min) |
(Max) |
(Max) |
(Max) |
(Max) |
(Max) |
|
(Min) |
|
C08B |
D083 03 ST 01 |
12.70 |
7.75 |
8.51 |
4.45 |
11.80 |
44.90 |
48.80 |
13.92 |
4850 |
|
C10B |
D101 03 ST 01 |
15.875 |
9.65 |
10.16 |
5.08 |
14.70 |
52.80 |
56.90 |
16.59 |
6810 |
|
C12B |
D120 03 ST 01 |
19.05 |
11.68 |
12.07 |
5.72 |
16.10 |
61.70 |
66.30 |
19.46 |
8850 |
|
C16B
|
D160 03 ST 01 |
25.40 |
17.02 |
15.88 |
8.27 |
24.10 |
99.00 |
105.30 |
31.88 |
17400 |
|
D160 03 ST 02 |
25.40 |
17.02 |
15.88 |
8.27 |
20.58 |
99.90 |
105.30 |
31.88 |
17400 |
|
C20B |
D200 03 ST 01 |
31.75 |
19.56 |
19.05 |
10.19 |
26.40 |
116.00 |
122.10 |
36.45 |
25490 |
|
C24B |
D240 03 ST 01 |
38.10 |
25.40 |
25.40 |
14.63 |
33.40 |
150.00 |
156.60 |
48.36 |
43330 |
|
C28B |
D280 03 ST 01 |
44.45 |
30.99 |
27.94 |
15.90 |
37.00 |
184.00 |
191.40 |
59.56 |
54040 |
|
C32B |
D320 03 ST 01 |
50.80 |
30.99 |
29.21 |
17.81 |
42.20 |
281.00 |
291.00 |
58.55 |
68320 |
|
