| ISO 606/BS 228/DIN 8187 |
European Series |
| Specification |
The
European series of roller chains are designed for use in mechanical
power transmission systems. |
|
|

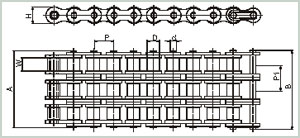

Triple Strand
|
Intl. |
Diamond |
Pitch |
Width |
Roller |
Bearing |
Plate |
Width |
Width |
Transv- |
Tensile |
|
Ref. |
Chain |
|
between |
Dia |
Pin |
Height |
Over |
Over |
erse |
Strength |
|
No. |
No. |
|
Inner |
|
Dia |
|
Bearing |
Joint |
Pitch |
|
| |
|
|
Plates |
|
|
|
Pin |
Fasteners |
|
|
| |
|
(P) |
(W) |
(D) |
(d) |
(H) |
(A) |
(B) |
(P1) |
(Kgf) |
| |
|
|
(Min) |
(Max) |
(Max) |
(Max) |
(Max) |
(Max) |
|
(Min) |
|
05B-3 |
D05B 03 |
8.00 |
3.00 |
5.00 |
2.31 |
7.10 |
19.90 |
23.00 |
5.64 |
1130 |
|
06B-3* |
D061 03 |
9.525 |
5.72 |
6.35 |
3.28 |
8.20 |
34.00 |
37.30 |
10.24 |
2540 |
|
08B-3 |
D083 03 |
12.70 |
7.75 |
8.51 |
4.45 |
11.80 |
44.90 |
48.80 |
13.92 |
4850 |
|
10B-3 |
D101 03 |
15.875 |
9.65 |
10.16 |
5.08 |
14.70 |
52.80 |
56.90 |
16.59 |
6810 |
|
12B-3 |
D120 03 |
19.05 |
11.68 |
12.07 |
5.72 |
16.10 |
61.70 |
66.30 |
19.46 |
8850 |
|
16B-3 |
D160 03 |
25.40 |
17.02 |
15.88 |
8.27 |
21.00 |
99.90 |
105.30 |
31.88 |
17400 |
|
20B-3 |
D200 03 |
31.75 |
19.56 |
19.05 |
10.19 |
26.40 |
116.00 |
122.10 |
36.45 |
25490 |
|
24B-3 |
D240 03 |
38.10 |
25.40 |
25.40 |
14.63 |
33.40 |
150.00 |
156.60 |
48.36 |
43330 |
|
28B-3 |
D280 03 |
44.45 |
30.99 |
27.94 |
15.90 |
37.00 |
184.00 |
191.40 |
59.56 |
54040 |
|
32B-3 |
D320 03 |
50.80 |
30.99 |
29.21 |
17.81 |
42.20 |
184.00 |
191.90 |
58.55 |
68320 |
|
40B-3 |
D400 03 |
63.50 |
38.10 |
39.37 |
22.89 |
52.90 |
227.00 |
237.00 |
72.29 |
96860 |
|
48B-3 |
D480 03 |
76.20 |
45.72 |
48.26 |
29.24 |
63.80 |
281.00 |
291.00 |
91.21 |
152940 |
* Straight Side Plates
|
|
|
