| ISO 606/BS 228/DIN 8187 |
European Series |
| Specification |
The
European series of roller chains are designed for use in mechanical
power transmission systems. |
|
|

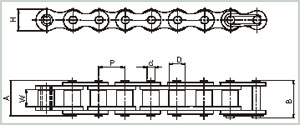

Single Strand
| Intl. |
Diamond |
Pitch |
Width |
Roller |
Bearing |
Plate |
Width |
Width |
Tensile |
|
Ref. |
Chain |
|
between |
Dia |
Pin |
Height |
Over |
Over |
Strength |
|
No. |
No |
|
Inner |
|
Dia |
|
Bearing |
Joint |
|
| |
|
|
Plates |
|
|
|
Pin |
Fasteners |
|
| |
|
(P) |
(W) |
(D) |
(d) |
(H) |
(A) |
(B) |
(Kgf) |
| |
|
|
(Min) |
(Max) |
(Max) |
(Max) |
(Max) |
(Max) |
(Min) |
|
04B-1 |
D04B 01 |
6.00 |
2.80 |
4.00 |
1.85 |
5.00 |
7.40 |
10.30 |
300 |
|
05B-1 |
D05B 01 |
8.00 |
3.00 |
5.00 |
2.31 |
7.10 |
8.60 |
11.70 |
510 |
|
06B-1* |
D061 01 |
9.525 |
5.72 |
6.35 |
3.28 |
8.20 |
13.50 |
16.80 |
920 |
|
08B-1 |
D083 01 |
12.70 |
7.75 |
8.51 |
4.45 |
11.80 |
17.00 |
20.90 |
1840 |
|
10B-1 |
D101 01 |
15.875 |
9.65 |
10.16 |
5.08 |
14.70 |
19.60 |
23.70 |
2290 |
|
12B-1 |
D120 01 |
19.05 |
11.68 |
12.07 |
5.72 |
16.10 |
22.70 |
27.30 |
2960 |
|
16B-1 |
D160 01 |
25.40 |
17.02 |
15.88 |
8.27 |
21.00 |
36.10 |
41.50 |
6120 |
|
20B-1 |
D200 01 |
31.75 |
19.56 |
19.05 |
10.19 |
26.40 |
43.20 |
49.30 |
9690 |
|
24B-1 |
D240 01 |
38.10 |
25.40 |
25.40 |
14.63 |
33.40 |
53.40 |
60.00 |
16310 |
|
28B-1 |
D280 01 |
44.45 |
30.99 |
27.94 |
15.90 |
37.00 |
65.10 |
72.50 |
20390 |
|
32B-1 |
D320 01 |
50.80 |
30.99 |
29.21 |
17.81 |
42.20 |
67.40 |
75.30 |
25500 |
|
40B-1 |
D400 01 |
63.50 |
38.10 |
39.37 |
22.89 |
52.90 |
82.60 |
92.60 |
36200 |
|
48B-1 |
D480 01 |
76.20 |
45.72 |
48.26 |
29.24 |
63.80 |
99.10 |
109.10 |
57100 |
* Straight Side Plates
|
|
|
