TIDC India - Conveyor Chains

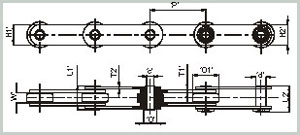

Minimum	Pitch	Width	Large	Bush	Hollow	Hollow	Hollow	Connecting	Inner Plate		Outer Plate		Avg.
Tensile		between	Roller	Dia	Pinbore	Pin	Pin	Pin					Wt/Mtr
Strength		Inner Plates	Dia			Dia	Length	Length	Height	Thick	Height	Thick	in
In	('P')	(’W’)	('D1')	('D')	(' C')	('d')	('L1')	('L2')	('H1')	('T1')	('H2’)	('T2’)	(Kg)
lbs		(Min)			(Min)		(Max)	(Max)
28000(MC28)	63.00	20.00	17.50	36.00	8.20	13.00	40.50	43.90	25.00	3.50	25.00	3.50	3.95
	80.00												3.44
	100.00												3.04
	125.00												2.71
	160.00												2.43
56000(MC56)	80.00	24.00	21.00	50.00	10.20	15.50	46.50	50.00	35.00	4.00	35.00	4.00	6.79
	100.00												5.87
	125.00												5.14
	160.00												4.52
	200.00												4.07
	250.00												3.71
112000(MC112)	100.00	32.00	29.00	70.00	14.30	22.00	63.00	69.90	50.00	6.00	50.00	6.00	15.16
	125.00												13.04
	160.00												11.16
	200.00												9.82
	250.00												8.75
	315.00												7.87
224000(MC224)	160.00	43.00	41.00	100.00	20.30	31.00	83.00	92.10	70.00	8.00	70.00	8.00	21.96
	200.00												18.85
	250.00												16.38
	350.00												14.32
	400.00												12.64
