TIDC India - Conveyor Chains

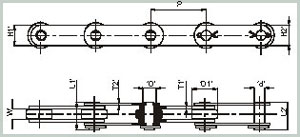

Minimum	Pitch		Width between	Large	Bush	Solid	Solid pin	Connecting	Inner Plate		Outer Plate		Avg.
tensile	Pitch		Inner Plates	roller	Dia	pin	length	pin length	Inner Plate		Outer Plate		Wt/Mtr
Strength	('P')			Dia		Dia			Height	Thick	Height	Thick	in
in			(W)	('D1')	('D')	('d')	('L1')	('L2')	('H1')	('T1')	('H2’)	('T2’)	(Kg)
lbs			(Min)				(Max)	(Max)
	INCH	METRIC
7500	2.0	50.80	15.00	31.80	18.00	14.00	38.00	42.60	25.40	3.80	25.40	3.80	4.07
	2.5	63.50											3.59
	3.0	76.20											3.29
	4.0	101.60											2.88
	5.0	127.00											2.65
	6.0	152.40											2.49
15000	2.0	50.80	19.00	47.60	23.60	19.00	46.00	49.80	38.10	5.10	38.10	3.80	8.14
	3.0	76.20											7.77
	4.0	101.60											6.56
	5.0	127.00											5.85
	6.0	152.40											5.34
	7.0	177.80											5.00
	8.0	203.20											4.78
	9.0	228.60											4.53
30000	4.0	101.60	25.40	66.67	33.20	26.90	60.00	65.40	51.00	7.10	51.00	5.10	14.50
	5.0	127.00											12.65
	6.0	152.40											11.40
	7.0	177.80											10.52
	8.0	203.20											9.87
	9.0	228.60											9.34
	12.0	304.80											8.31
45000	5.0	127.00	38.10	88.90	38.10	31.80	82.00	88.20	61.00	8.90	61.00	7.60	24.69
	6.0	152.40											24.69
	7.0	177.80											22.31
	8.0	203.20											20.55
	9.0	228.60											19.21
	12.0	304.80											16.49
60000	6.0	152.40	38.10	88.90	38.10	23.00	82.00	86.90	61.00	8.90	61.00	7.60	23.73
	7.0	177.80											21.96
	8.0	203.20											20.26
	9.0	228.60											18.94
	12.0	304.80											16.28
90000	6.0	152.40	38.10	88.90	38.10	29.40	94.00	98.60	63.50	13.00	63.50	10.00	29.61
	9.0	228.60											23.78
	12.0	304.80											20.87
