Diamond Max Sintered Bush Chains |
| Specification |
Diamond
Max sintered bush chains are recommended for applications where
lubrication is often not possible like food processing, printing,
pharmaceuticals and electronics. |
|
|
|

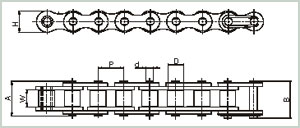

Intl
Ref. |
Diamond |
Pitch |
Width |
Roller |
Plate |
Width |
Bearing |
Width |
Tensile |
|
No. |
Chain |
|
between |
Dia |
Height |
Over |
Pin |
Over |
Strength |
| |
No. |
|
Inner |
|
|
Bearing |
Dia |
Joint |
|
| |
|
|
Plates |
|
|
Pin |
|
Fasteners |
|
| |
|
(P) |
(W) |
(D) |
(H) |
(A) |
(d) |
(B) |
Kgf |
| |
|
|
(Min) |
(Max) |
(Max) |
(Max) |
(Max) |
(Max) |
(Min) |
|
08B-1 |
L083 01 |
12.70 |
7.75 |
8.51 |
12.40 |
17.00 |
4.45 |
20.90 |
1840 |
|
10B-1 |
L101 01 |
15.875 |
9.65 |
10.16 |
14.70 |
19.60 |
5.08 |
23.70 |
2290 |
|
12B-1 |
L120 01 |
19.05 |
11.68 |
12.07 |
16.10 |
22.70 |
5.72 |
27.30 |
2960 |
|
|
|
