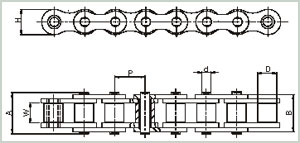

Diamond Chain	Pitch	Width between	Roller	Plate	Bearing	Width Over	Width	Trans-	Tensile
No.	(P)	Inner Plates	Dia	Width	Pin	Bearing	Over Joint	verse	Strength
					Dia	Pin	Fasteners	Pitch
		(W)	(D)	(H)	(D)	(A)	(B)	(P1)	Kgf
		(Min)	(Max)	(Max)	(Max)	(Max)	(Max)		(Min)
E08301ZPB01*	25.40	7.75	8.51	11.80	4.45	17.00	20.90	-	1400
D12Y01PB01	19.05	12.57	11.91	18.00	5.94	26.90	31.50	-	3180
D12Y02PB01	19.05	12.57	11.91	18.00	5.94	49.70	54.40	22.78	6360

* Double Pitch Zinc Plated Chains
