Motorcycle Drive Chains consists of Main Drive Chains for all two wheelers and three wheelers for tranmitting power from engine to the rear wheel.

Motorcycle Drive Chains

Specification

Diamond Motorcycle drive chains are precision engineered to offer excellent performance in terms of low wear and long life.

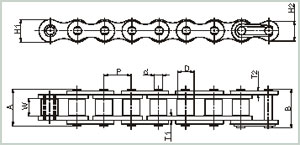

Intl	Diamond	Pitch	Width	Roller	Plate Height		Plate Thickness		Bearing	Width	Width	Tensile
Ref.	Chain		between	Diameter					Pin	Over	Over	Strength
No.	No.		Inner						Diameter	Bearing	Joint
			Plates		IP	OP	IP	OP		Pin	Fasteners

		(P)	(W)	(D)	(H1)	(H2)	(T1)	(T2)	(D)	(A)	(B)	Kgf
			(Min)	(Max)	(Max)	(Max)	(Max)	(Max)	(Max)	(Max)	(Max)	(Min)
J415	D 087 01	12.70	5.15	7.75	10.57	10.57	1.37	1.37	4.07	13.16	14.30	1450
J415H	D 08K 01	12.70	5.01	7.75	10.57	10.57	1.76	1.50	4.07	14.05	15.20	1660
J415R	D 08M 01	12.70	5.01	7.75	9.90	9.00	1.76	1.58	4.07	14.30	15.40	1660
J420	D 088 01	12.70	6.35	7.77	11.56	10.57	1.50	1.50	3.96	14.80	16.40	1660
J428	D 089 01	12.70	7.95	8.51	11.56	10.57	1.58	1.50	4.47	16.80	19.00	1970
J428H	D 08E 01	12.70	7.85	8.51	11.75	10.20	2.00	2.00	4.46	18.90	21.05	2180
J520	D 105 01	15.875	6.35	10.16	14.48	13.51	2.00	2.00	5.07	17.44	18.90	2800
J525	D 104 01	15.875	7.94	10.16	14.48	13.51	2.00	2.00	5.07	18.95	20.40	2800
J530	D 102 01	15.875	9.40	10.16	14.48	13.51	2.00	2.00	5.07	21.80	24.30	2800
J520M	D 105 A2	15.875	6.35	10.16	15.00	12.92	2.00	2.00	5.25	17.44	18.90	3110

Work Standard Drive Chains

Diamond	Pitch	Width	Roller	Plate Height		Plate Thickness		Bearing	Width	Width	Tensile
Chain		between	Diameter					Pin	Over	Over	Strength
No.		Inner						Diameter	Bearing	Joint
		Plates		IP	OP	IP	OP		Pin	Fasteners
		(W)	(D)	(H1)	(H2)	(T1)	(T2)	(D)	(A)	(B)	Kgf
	(P)	(Min)	(Max)	(Max)	(Max)	(Max)	(Max)	(Max)	(Max)	(Max)	(Min)
D 084 01	12.70	4.88	7.75	10.20	9.10	1.25	1.20	4.07	12.35	13.85	1270
D 086 01	12.70	2.38	7.75	9.86	8.18	1.00	1.00	3.62	8.20	-	850
D 08C 01	12.70	3.30	7.75	9.47	8.18	1.00	1.00	3.62	10.20	11.70	850
D 08D 01	12.70	6.25	7.77	9.47	8.18	1.25	1.25	3.58	14.80	18.70	940
D 08F 01	12.70	7.77	4.80	11.56	10.57	1.50	1.50	3.96	13.45	15.15	1460
D 08L 01	12.70	5.15	7.75	9.90	9.00	1.50	1.37	4.07	13.16	14.30	1450
D 08N 01	12.70	7.95	8..50	11.75	10.20	1.76	1.76	4.50	17.70	18.95	2180
D 08P 01	12.70	5.15	7.68	11.56	10.57	1.00	1.00	4.07	12.10	13.00	970
D 08Q 01	12.70	7.95	8.50	11.56	10.57	1.76	1.76	5.00	17.70	18.95	2180
D 08R 01	12.70	7.95	8.51	12.00	10.80	1.75	1.75	4.50	17.70	18.95	2180
D 08S 01	12.70	7.95	8.50	11.56	10.57	1.58	1.50	5.00	16.72	19.05	1970
D 08T 01	12.70	7.85	8.51	11.75	10.20	2.00	2.00	5.00	18.90	21.05	2180
S 08M 01	12.70	5.01	7.75	10.57	10.57	1.50	1.50	4.44	14.00	15.00	1660
B 103 01	15.875	11.40	10.08*	16.58	16.58	2.44	2.85	7.00	31.15	31.85	4880
B 104 01	15.875	7.95	10.16*	14.48	-	2.00	2.00	5.07	18.90	20.35	2800
D 101 01	15.875	9.65	10.16	14.48	13.51	1.58	1.58	5.07	19.60	23.70	2380
D 105 A1	15.875	6.35	10.16	15.00	13.00	2.00	2.00	5.20	17.95	19.40	3010
* Bush Chains
